Project Description

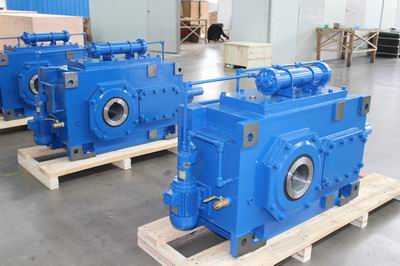

B series helical bevel gear unit has compact structure, flexible design, outstanding performance, and multiple standard options to meet clients specific application requirements.
Rated Output Torque
6700…900000Nm
Rated Power （n1=1400min）
4.…4900KW
Ratio
5…450(imax:138100)
Mounting Mode
Foot mounted, Flange mounted, shaft mounted
Input Mode
Solid shaft, IEC flange motor adaptor
Output mode
Single and double solid output shaft, keyway hollow shaft, shrink disk, splined hollow shaft
ADD-ON PIECES
- Fan cooling, condenser cooling
- Independent cooling system
- Dip lubrication compensation oil tank, forced lubrication oil pump
- Auxiliary drive
- Backstop
- Fluid coupling
HELICAL BEVEL GEAR UNIT ORDERING INFORMATION
| 1 | Type | H – Helical gear units
B – Bevel-helical gear units |
2 | Number of stage | 1, 2, 3, 4 | |
| 3 | Output shaft design | S – Solid shaft
H – Hollow shaft D – Hollow shaft for shrink disk K – Hollow shaft with involute splines accessories to DIN5480 (on request) F – Flanged shaft (on request) V – Shaft d2 reinforced (on request) |
4 | Mounting | H – Horizontal
M – Horizontal design without feet V – Vertical |
|
| 5 | Size | (3 … 28) | 6 | Ratio | Transmission ratio | |
| 7 | Assemblies | A, B, C, D |
