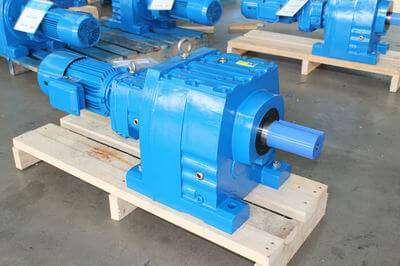

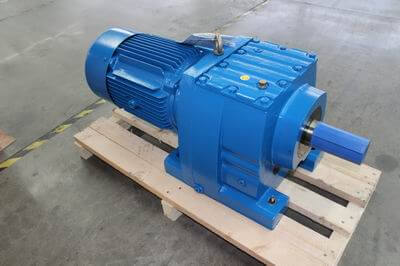

R series Inline Helical Gearmotor
Descriptions:
R series inline helical gearmotor is designed and manufactured according to the modular base. It has the advantages of multi-motor combination, different types of installation and structure programs and meticulous transmission ratio, which can meet different working condition and makes integration of mechatronics.
Technical parameters:
- Size: R17-R167
- Output Torque: 70~18000N. M
- Input Power: 0.12~160kw
- Reducing Ratio:5~264(imax: 18125)
2-stage 5~24.8, 3-stage 27.2~264, R/RF combination type can be up to 18125. - Housing form: R: with foot mounted housing
RF: Without foot mounted housing
RX: Single stage housing without foot mounted - Output installing form: F: Flange mounted
M: Flange-mounted with extended bearing hub - Input form: IEC flange motor adapter
Input shaft(AD1, AD2, AD3, AD4, AD5, AD6, AD7, AD8) - Efficiency: Two-stage 96%, three-stage 94%, and combination of R/RF 85%.

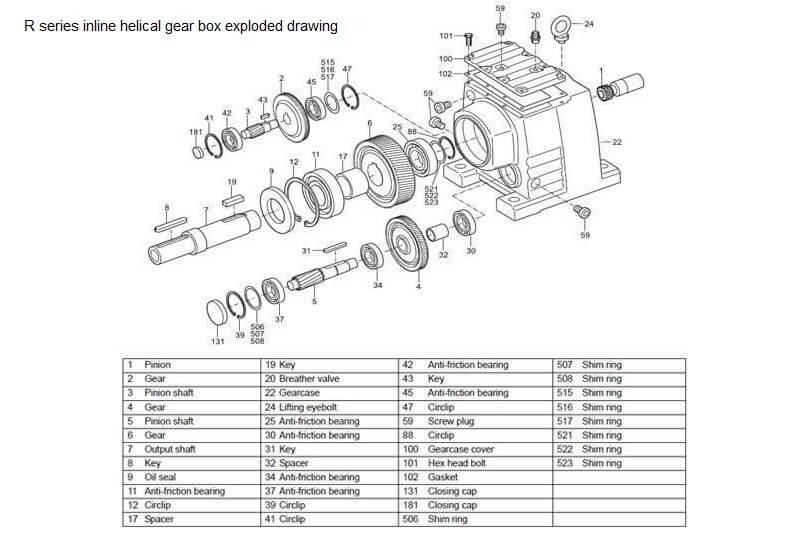

Features:
- Small horizontal deviation of output shaft, compact structure, maximum utilization of housing space, accommodation of 2-stage and 3-stage gears in one case.
- Unitary cast housing with high rigidity, enhanced shaft strength and extended bearing lifetime.
- The special-purpose RM Series for agitators can withstand larger axial and radial load.

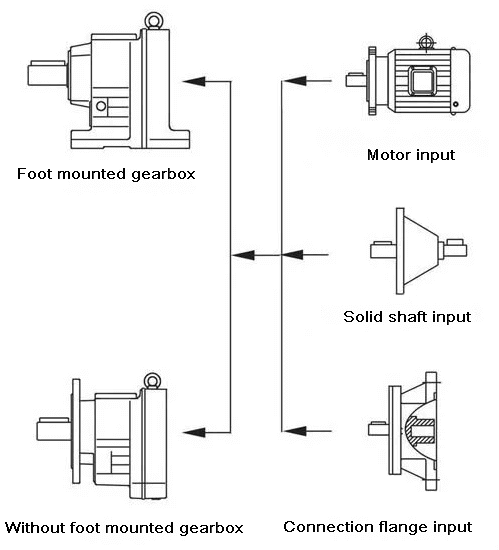

- Mounting mode: Foot-mounted, flange-mounted.
- Input mode: Coupled motor, belted motor, input shaft or connection flange.
| Housing material | HT200 high-strength cast iron(R17, R27, R37, R47, R57, R67, R77, R87) | |||||||||||
| Housing material | HT250 High strength cast iron(R97, R 107, R137, R147, R167) | |||||||||||
| Gear material | 20CrMnTi | |||||||||||
| Gear Surface & hardness | HRC58°-62° | |||||||||||
| Gear core hardness | HRC33°-78° | |||||||||||
| Input/output shaft material | 40Cr | |||||||||||
| Gear Machining precision | Accurate grinding 6-5 grade | |||||||||||
| Heat treatment | Carburizing, Quenching etc | |||||||||||
| Efficiency | Up to 92% | |||||||||||
| Noise(Max) | 60-67dB | |||||||||||
| Installation type | Foot mounted, flange mounted | |||||||||||
| Output type | Solid shaft | |||||||||||
| Bearing brand | NSK, SKF, HRB, C&U etc | |||||||||||
| Oil seal brand | NAK, TCY etc | |||||||||||
| Lubricant | VG220 | |||||||||||
| Motor | IP55, F class | |||||||||||
| Motor shaft | 40Cr, Carburizing, Quenching etc | |||||||||||
| Warranty | 12 months | |||||||||||
| Color | Blue, Grey | |||||||||||
| Model | R37 | R47 | R57 | R67 | R77 | R87 | R97 | R107 | R137 | R147 | R167 | |
| Weight | 9KG | 14KG | 24KG | 27KG | 33KG | 60KG | 110KG | 150KG | 255KG | 365KG | 615KG | |
| Shaft Ф | 25mm | 30mm | 35mm | 35mm | 40mm | 50mm | 60mm | 70mm | 90mm | 110mm | 120mm | |
R series helical speed reducer has the following models:
RX-Y Foot mounted single stage helical gear unit
RX37 RX57 RX67 RX77 RX87 RX97 RX107 RX127 RX157
RXF-Y Flange mounted single-stage helical gear unit
RXF37 RXF57 RXF67 RXF77 RXF87 RXF97 RXF107 RXF127 RXF157
R-Y Foot mounted helical gear unit
R17 R27 R37 R47 R57 R67 R77 R87 R97 R107 R137 R147 R167
RF-Y Foot mounted and flange mounted helical gear unit
RF17 RF27 RF37 RF47 RF57 RF67 RF77 RF87 RF97 RF107 RF137 RF147 RF167
RF-F-Y Flange mounted helical gear unit
RF-F-17 RF-F-27 RF-F-37 RF-F-47 RF-F-57 RF-F-67 RF-F-77 RF-F-87 RF-F-97 RF-F-107 RF-F-137 RF-F-147 RF-F-167
RM-Y Flange mounted with extended bearing hub helical gear unit
RM57 RM67 RM77 RM87 RM97 RM107 RM137 RM147 RM167
R-AD Foot mounted helical gear unit with input shaft
R37-AD1 R37-AD2 R47-AD2 R47-AD3 R57-AD2 R67-AD2 R77-AD3 R77-AD4 R87-AD3 R87-AD4 R87-AD5 R97-AD4 R97-AD5 R97-AD6 R107-AD4 R107-AD5 R107-AD6 R137-AD6 R137-AD7 R137-AD8 R147-AD6 R147-AD7 R147-AD8 R167-AD6 R167-AD7 R167-AD8
R-RF-Y Foot mounted with combined helical gear unit
R47RF37 R57RF37 R67RF37 R77RF37 R87RF57 R97RF57 R107RF77 R137RF77 R147RF77 R147RF87 R167RF97 R167RF107
R-AM Helical gearbox with IEC flange (motor adapter)
R37-AM63B5 R37-AM71B5 R37-AM80B5 R37-AM90B5 R37-AM100B5 R37-AM112B5 R37-AM132B5
R47-AM71B5 R47-AM80B5 R47-AM90B5 R47-AM100B5 R47-AM112B5
R57-AM71B5 R57-AM80B5 R57-AM90B5 R57-AM100B5 R57-AM112B5
R67-AM71B5 R67-AM80B5 R67-AM90B5 R67-AM100B5 R67-AM112B5
R77-AM80B5 R77-AM90B5 R77-AM100B5 R77-AM112B5 R77-AM132B5 R77-AM160B5
R87-AM90B5 R87-AM100B5 R87-AM112B5 R87-AM132B5 R87-AM160B5 R87-AM180B5
R97-AM100B5 R97-AM112B5 R97-AM132B5 R97-AM160B5 R97-AM180B5 R97-AM200B5
R107-AM100B5 R107-AM112B5 R107-AM132B5 R107-AM160B5 R107-AM180B5 R107-AM200B5 R107-AM225
R137-AM112B5 R137-AM132B5 R137-AM160B5 R137-AM180B5 R137-AM200B5 R137-AM225
R147-AM132B5 R147-AM160B5 R147-AM180B5 R147-AM200B5 R147-AM225B5 R147-AM250B5 R147-AM280B5
R167-AM160B5 R167-AM180B5 R167-AM200B5 R167-AM225B5 R167-AM250B5 R167-AM280B5

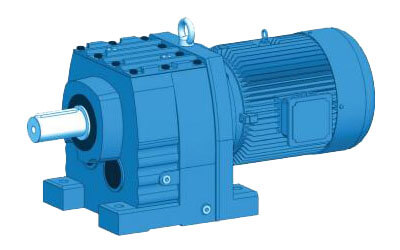

R-Y Foot mounted helical gear unit

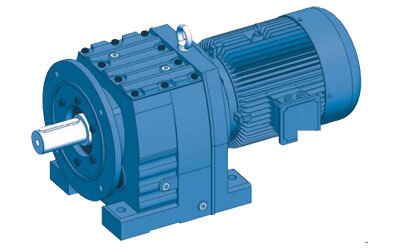

RF-Y Foot mounted and flange mounted helical gear unit

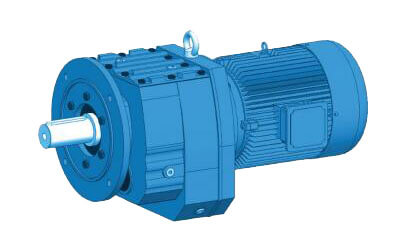

RF-F-Y Flange mounted helical gear unit

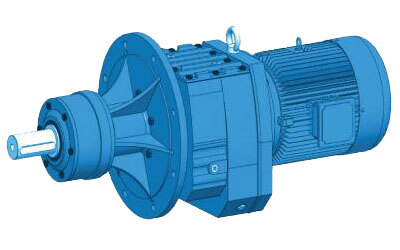

RM-Y Flange mounted with extended bearing hub helical gear unit

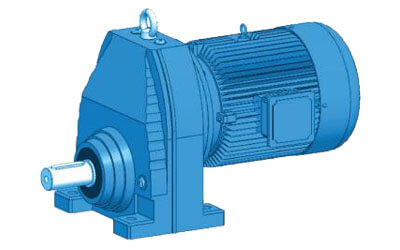

RX-Y Foot mounted single stage helical gear unit

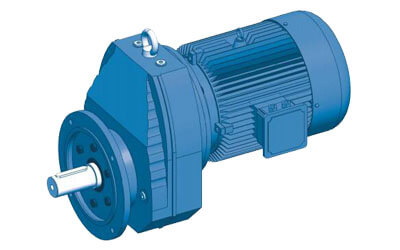

RXF-Y Flange mounted single-stage helical gear unit

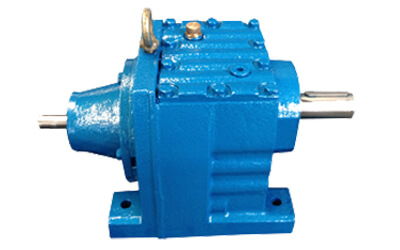

R-AD Foot mounted helical gear unit with input shaft

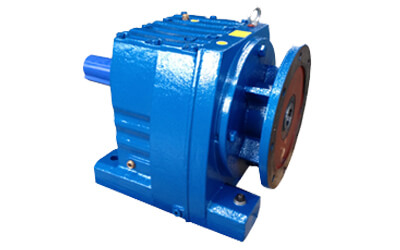

R-AM Helical gearbox with IEC flange(motor adapter)
